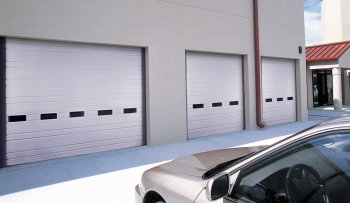

Industrial Series doors feature a variety of standard ribbed, flush and embossed patterns such as stucco and woodgrain. Available in a wide selection of gauges for pro-grade durability, this series is a great choice for high-traffic applications including warehouses, distribution centers and loading docks.
| Model | Section Thickness | Panel Design | Ext. Steel Gauge | Backer | R-value* | Max Width** | Max Height |
| 520 | 2″ | Ribbed Steel | 20 Gauge | N/A | N/A | 26’2″ | 20’0″ |
| 520S | 2″ | Minor & Deep Ribs | 24 Gauge | Pre-painted 30 gauge steel back cover | 6.6 | 26’2″ | 20’0″ |
| 522 | 2″ | Flush | 20 Gauge | N/A | 6.6** | 24’2″ | 24’0″ |
| 522S | 2″ | Flush | 24 Gauge | N/A | 6.6** | 24’2″ | 24’0″ |
| 524 | 2″ | Ribbed Steel | 24 Gauge | N/A | N/A | 24’2″ | 20’0″ |
| 524V | 2″ | Minor & Deep Ribs | 24 Gauge | Polyethylene vinyl back cover | 6.6 | 26’2″ | 20’0″ |
| 524S | 2″ | Minor & Deep Ribs | 24 Gauge | Pre-painted 30 gauge steel back cover | 6.6 | 24’2″ | 20’0″ |
| 525 | 2″ | Ribbed Steel | 25 Gauge | N/A | N/A | 26’2″ | 16’0″ |
| 525V | 2″ | Minor & Deep Ribs | 25 Gauge | Polyethylene vinyl back cover | 6.6 | 26’2″ | 16’0″ |
| 525S | 2″ | Minor & Deep Ribs | 25 Gauge | Pre-painted 30 gauge steel back cover | 6.6 | 20’2″ | 16’0″ |
| 664 | 2 1/8″ | Raised Panel Steel | 24 Gauge | N/A | N/A | 20’2″ | 16’0″ |
| 664V | 2 1/8″ | Raised Panel | 24 Gauge | Polyethylene vinyl back cover | 6.3 | 20’2″ | 16’0″ |
Insulated and Non-insulated doors come with a variety of options to address your building requirements. Options below are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.
| Panel Design: | 2″ thick roll formed ribbed steel |
| Steel Gauge: | 20 ga (.034″ min) – Model 520, 24 ga (.022″ min) – Model 524and 25 ga (.019 min) – Model 525 ribbed steel sections |
| Joint Design: | Tongue and groove |
| Thickness/Insulation: | No insulation |
| Hardware: | 14 gauge hinges, commercial 10-ball steel rollers, 10,000 cycle torsion springs |
| Colors: | Pre-painted white or brown (520/525) Pre-painted white, brown, tan or gray (524) |
| Limited Warranty: | 10-year finish against rust / one-year material & workmanship |
| Panel Design: | 2″ thick roll formed stucco embossed ribbed steel |
| Steel Gauge: | 20 gauge (.034″ min) for maximum dent resistance |
| Joint Design: | Tongue and groove |
| Thickness /Insulation | 1-3/8″ thick polystyrene insulation with pre-painted 30 gauge steel backcover |
| Thermal Conductivity | R-Value 6.6* |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors | Pre-painted white or brown |
| Limited Warranty: | 10-year paint / one-year material & workmanship |
| Panel Design: | 2″ thick roll formed stucco embossed steel |
| Steel Gauge: | 24 gauge (.022″ min) ribbed steel sections |
| Joint Design: | Tongue and groove |
| Thickness /Insulation | 1-3/8″ thick polystyrene insulation with polyethylene vinyl backcover (524V)
1-3/8″ thick polystyrene insulation with pre-painted 30 gauge steel backcover (524S) |
| Thermal Conductivity | R-Value 6.6* |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors | Pre-painted white, brown, tan or gray |
| Limited Warranty: | 10-year paint /one-year material & workmanship |
| Panel Design: | 2″ thick roll formed smooth steel with combination of deep minor ribs |
| Steel Gauge: | 25 gauge (.019″ min) |
| Joint Design: | Tongue and groove |
| Thickness /Insulation | 1-3/8″ thick polystyrene insulation with polyethylene vinyl backcover (525V)
1-3/8″ thick polystyrene insulation with pre-painted 30 gauge steel backcover (525S) |
| Thermal Conductivity: | R-Value 6.6* |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | Pre-painted white or brown |
| Limited Warranty: | 10-year paint / one-year material & workmanship |
| Panel Design: | 1 7/8″ thick roll formed steel |
| Steel Gauge: | 24 gauge (.22″ min) raised panel door |
| Joint Design: | Tongue and groove |
| Thickness & Insulation | No insulation |
| Hardware: | 14 gauge hinges, commercial 10-ball steel rollers, 10,000 cycle torsion springs |
| Colors: | Pre-painted snowmist white, chocolate, brown, almond, sandstone, or desert tan. |
| Limited Warranty: | 10-year finish against rust through / one-year material & workmanship |
| Panel Design: | 1-7/8″ thick woodgrain embossed raised panel steel |
| Steel Gauge: | 24 gauge (.022″ min) ribbed steel sections |
| Joint Design: | Tongue-and-groove |
| Thickness /Insulation | 1-3/8″ thick polystyrene insulation with polyethylene vinyl backcover |
| Thermal Conductivity | R-Value 6.3* |
| Paint System | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors | Pre-painted white, brown, tan or gray; Trinar white or beige |
| Limited Warranty: | 10-year paint / one-year material & workmanship |
*Calculated garage door section R-value is in accordance with DASMA TDS-163.
520, 520S Brochure
COMMERCIAL OVERVIEW
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options. Learn more
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. Click here for details
