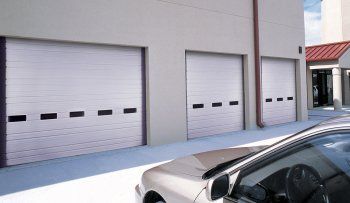

Commercial Industrial Series Garage Doors in Wyckoff, Wyckoff, and the surrounding areas
Industrial Series doors feature a variety of standard ribbed, flush and embossed patterns such as stucco and woodgrain. Available in a wide selection of gauges for pro-grade durability, this series is a great choice for high-traffic applications including warehouses, distribution centers and loading docks.
MODELS
OPTIONS
Insulated and Non-insulated doors come with a variety of options to address your building requirements. Options below are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.
Design Options:
- Windows
- 24″x6″
- 24″x12″
- Full View (pre-painted white or brown or clear anodized)
- Black frame Window with Rounded Corners
Colors:
- White – All Models
- Brown – All Models
- Tan – 524, 524S, 524V
- Gray – 524, 524S, 524V
- Trinar White – 524, 524V, 525S
- Desert Tan – 664, 664V
- Hunter Green – 664, 664V
- Sandtone – 664, 664V
- Almond – 664, 664V
Performance Options:
- High Cycle Springs (25K, 50K and 100K available)
- 3″ heavy duty track (where not standard)
- Outside keyed Security Lock
- Double End Stiles
- Design pressure rated (WindCode)
- Impact Rated
- Photo eyes, sensing edges and Operators
- Sustainable Door Upgrade
- Header (top) and Jamb Seals
Custom Options:
- Mullions
- Breakaway Sections
- Pass Door
FEATURES

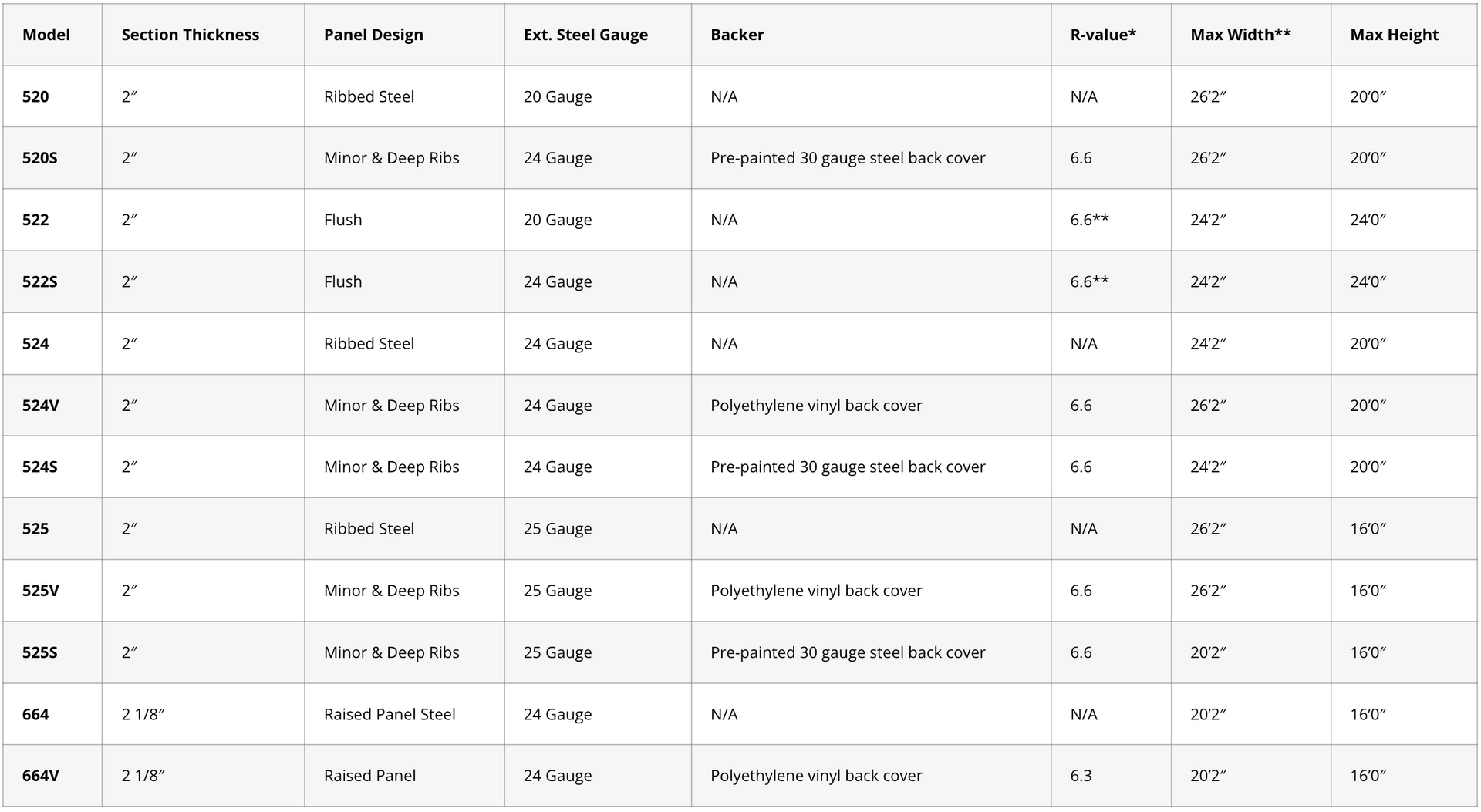

Model – 520/524/525

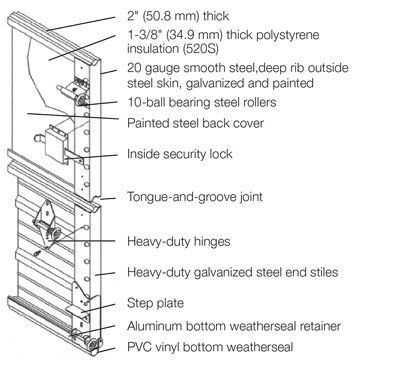

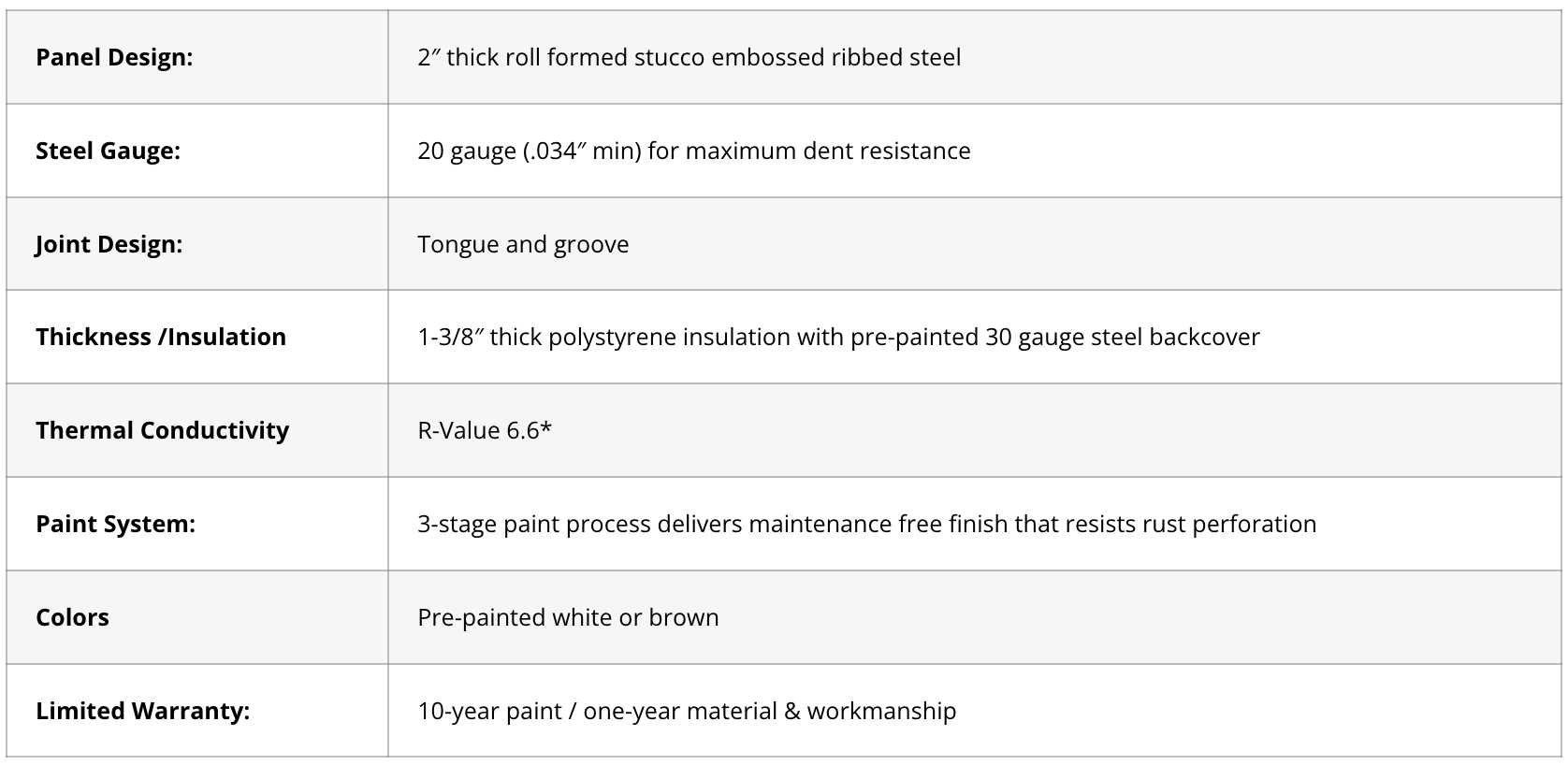

Model 5205

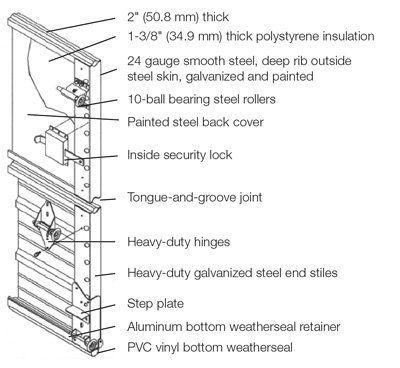

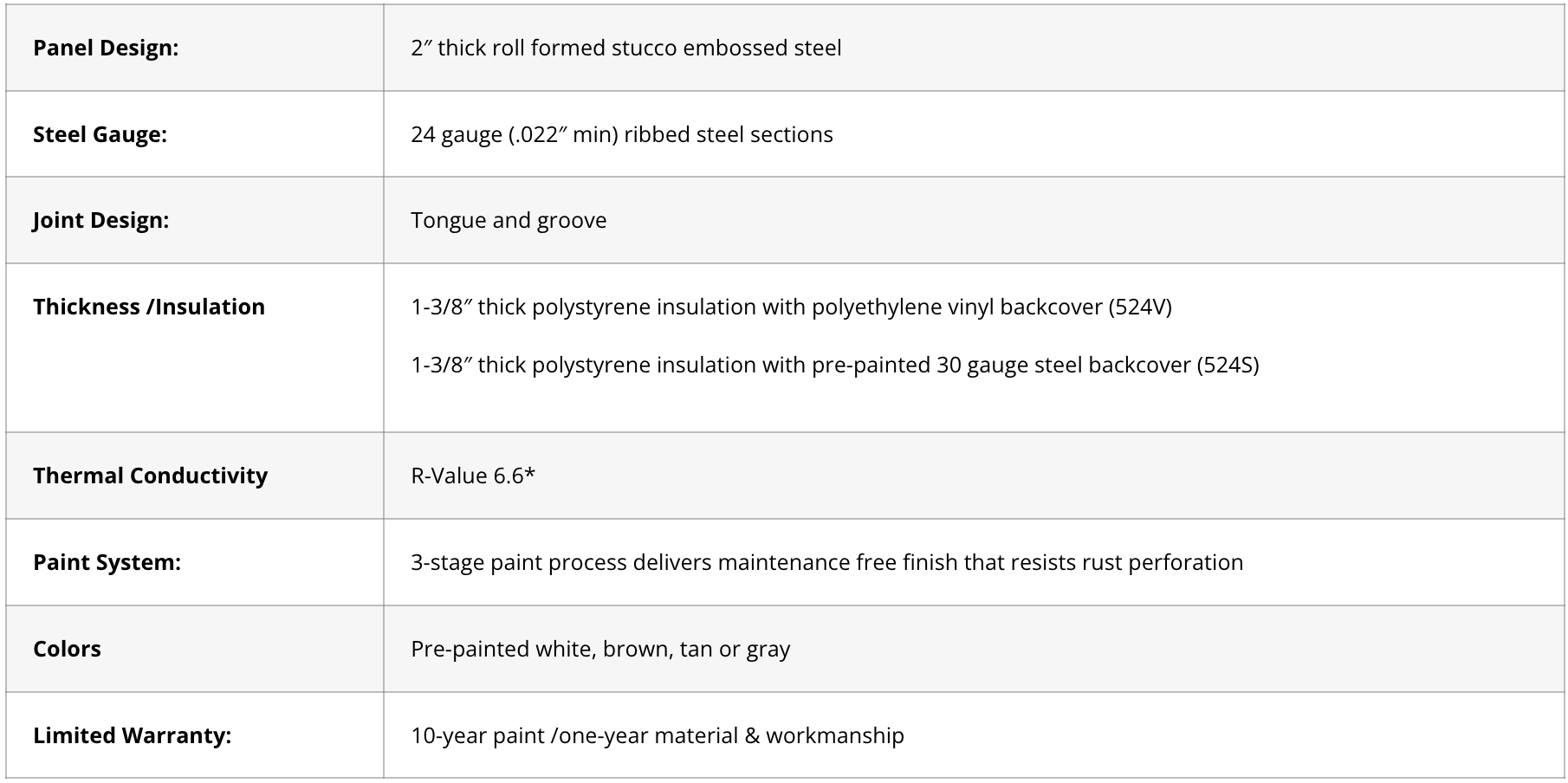

MODEL 524V / 524S

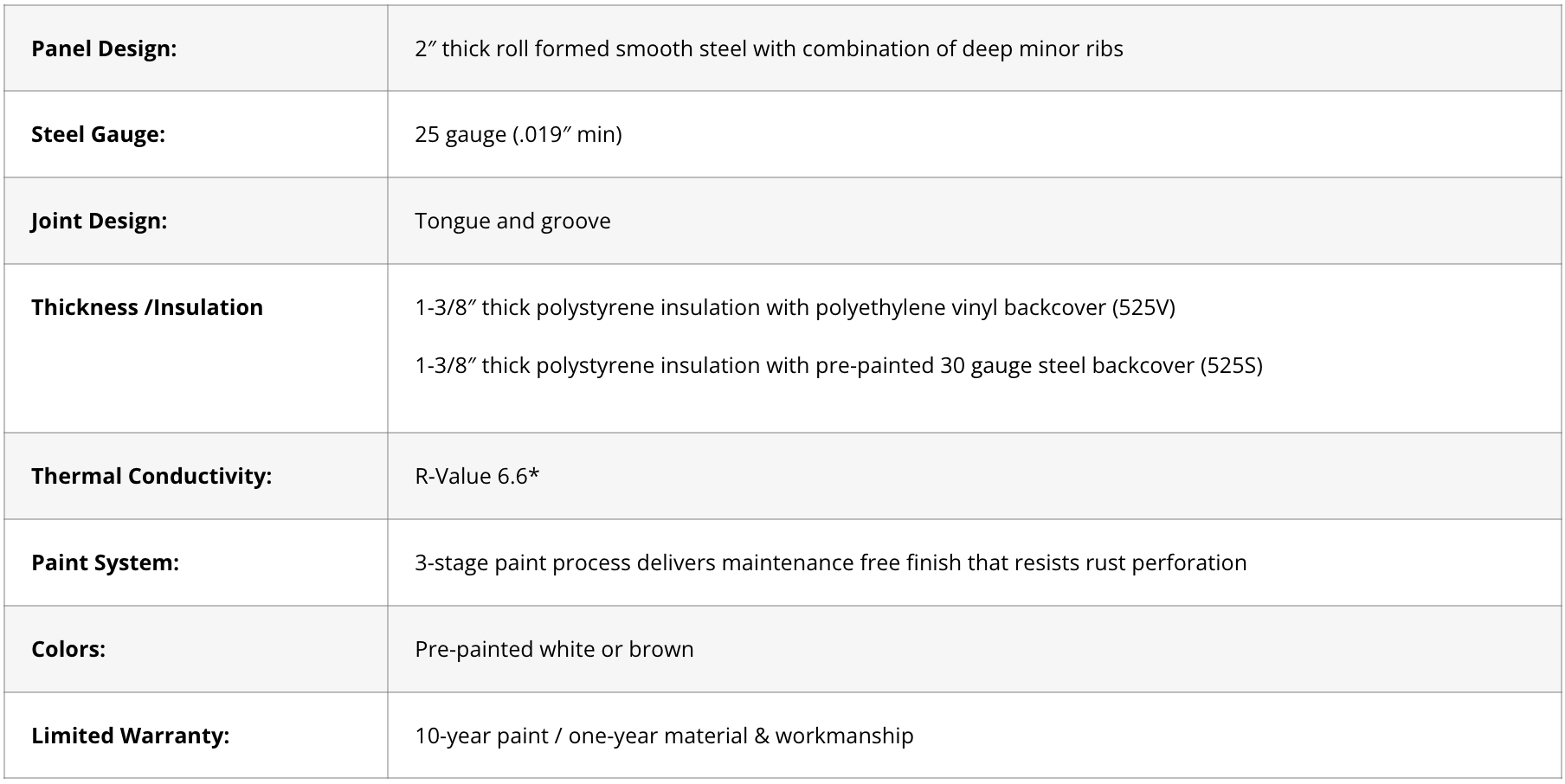

MODEL 525V / 525S

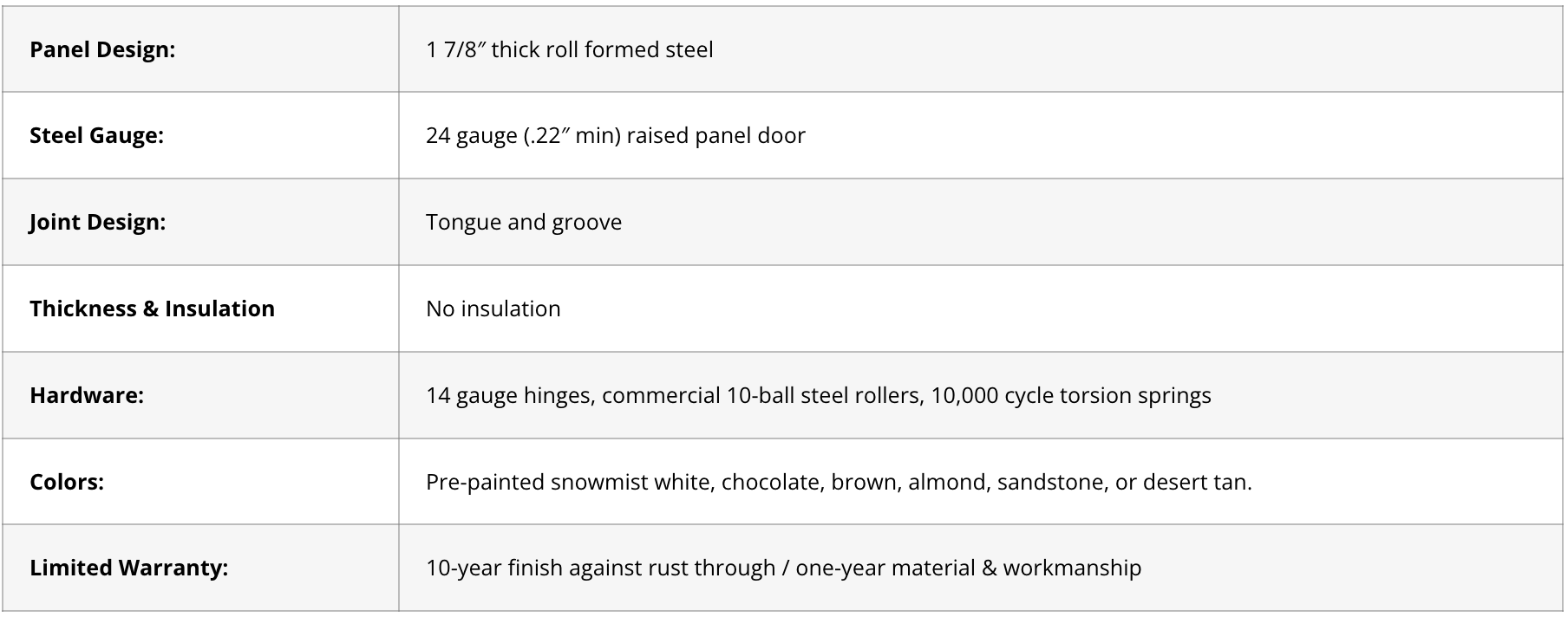

Model – 664

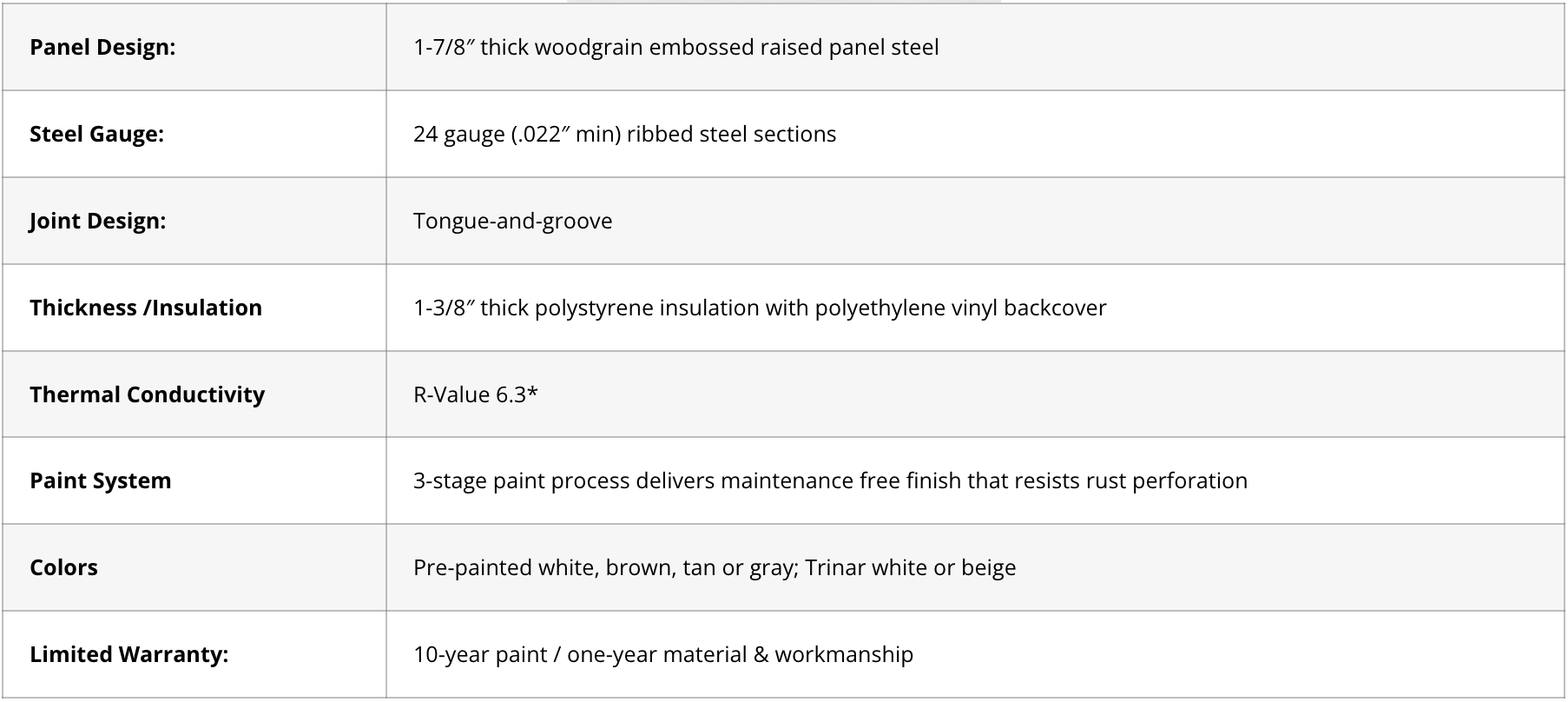

MODEL 664V
*Calculated garage door section R-value is in accordance with DASMA TDS-163.
BROCHURES
520, 520S Brochure
COMMERCIAL OVERVIEW

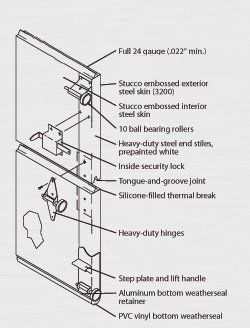

HARDWARE
COMMERCIAL HARDWARE
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
COMMERCIAL TRACK APPLICATIONS
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options. Learn more
COMMERCIAL TORSION SPRINGS
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. . Click here for details
