Wyckoff Garage Door Canyon Ridge® Collection Modern Series

CANYON RIDGE® collection MODERN series garage doors provide a range of contemporary garage door styles that beautifully complement mid-century and modern homes. Choose from horizontal plank designs, aluminum inlays, and full-view glass options, all with faux-wood finishes that won’t rot, warp or crack. These low-maintenance garage doors are the perfect way to highlight natural materials and other textures on your home’s exterior.

CONSTRUCTION OVERVIEW

• 4-layer construction including durable, composite, steel, and Intellicore insulation.
• R-Values range from 6.3 to 20.4. Features our Safe-T-Bracket®, which prevents injury that could occur if the bottom bracket were removed with the door closed and under tension.Calculated door section R-value is in accordance with DASMA TDS-163.
• Heavy-duty 14-gauge steel hinges and brackets provide smooth operation.
• 10-ball nylon ball bearing rollers help ensure smooth, long-lasting, quiet operation.
• Replaceable vinyl bottom weather seal with a rustproof aluminum retainer.

DESIGN OVERVIEW

• CANYON RIDGE® collection MODERN series garage doors feature key elements of contemporary architecture, including clean horizontal lines, sleek windows and aluminum accents.
• For doors with windows, insulated tempered glass is standard.
• Insulated Frosted, Insulated Obscure and Insulated Rain glass are also available.
• Attractive black powder coated grip handles and step plates are provided standard. Optional aluminum grip handles are available.

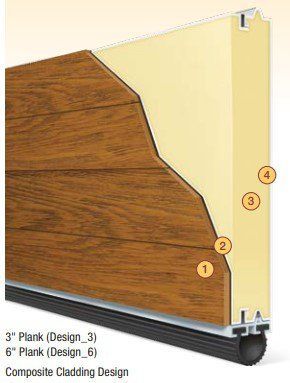

PLANK DESIGN

1. CLADDING
2. STEEL
3. 2″ INTELLICORE® POLYURETHANE INSULATION
4. STEEL

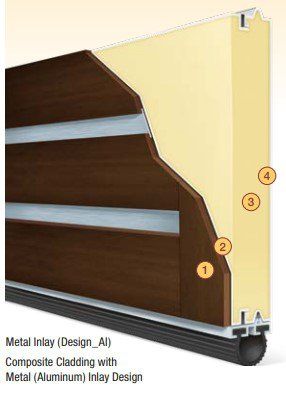

METAL (ALUMINUM) INLAY DESIGN

1. CLADDING
2. STEEL
3. 2″ INTELLICORE® POLYURETHANE INSULATION
4. STEEL

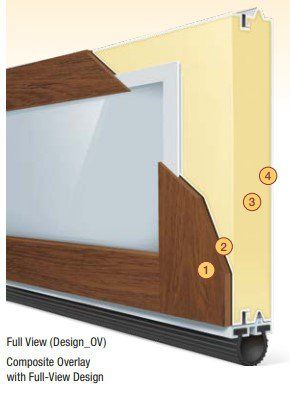

FULL-VIEW DESIGN

1. OVERLAY (FULL VIEW)
2. STEEL
3. 2″ INTELLICORE® POLYURETHANE INSULATION
4. STEEL
